[Android java] Intro_slide 화면 구현하기(how to make Intro_slide in Android)

Intro_slide 화면 구현하기

안녕하세요 어플리케이션을 개발하다가, 첫 실행 시 설명화면을 slide로 보여주는 화면을 구현하려고 하였습니다.

i got trouble while making intro_slide in Android.  so after study, i  decided to share these code for everyone.
just copy the below code and use it .

1.MainActivity

package com.example.myapplication1;

import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;

public class MainActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
    }
}



2.prefManager

이는 첫 실행인지 아닌지를 디바이스에 저장하기 위해 필요한 클래스입니다.
this is the Class for saving the data. the data is for checking whether the app is launching for the first time.

package com.example.myapplication1;

import android.content.Context;
import android.content.SharedPreferences;

public class prefManager {
    SharedPreferences pref;
    SharedPreferences.Editor editor;
    Context _context;

    // shared pref mode
    int PRIVATE_MODE = 0;

    // Shared preferences file name
    private static final String PREF_NAME = "intro-welcome";

    private static final String IS_FIRST_TIME_LAUNCH = "IsFirstTimeLaunch";



    public  prefManager(Context context) {
        this._context = context;
        pref = _context.getSharedPreferences(PREF_NAME, PRIVATE_MODE);
        editor = pref.edit();
    }

    public void setFirstTimeLaunch(boolean isFirstTime) {
        editor.putBoolean(IS_FIRST_TIME_LAUNCH, isFirstTime);
        editor.commit();
    }

    public boolean isFirstTimeLaunch() {
        return pref.getBoolean(IS_FIRST_TIME_LAUNCH, true);
    }


}



3.WelcomActivity

intro slide 화면을 다루는 액티비티입니다.
the class for controlling intro_slide by adapter

package com.example.myapplication1;

import android.content.Context;
import android.content.Intent;
import android.graphics.Color;
import android.os.Build;
import android.os.Bundle;
import android.text.Html;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.view.Window;
import android.view.WindowManager;
import android.widget.Button;
import android.widget.LinearLayout;
import android.widget.TextView;

import androidx.appcompat.app.AppCompatActivity;
import androidx.viewpager.widget.PagerAdapter;
import androidx.viewpager.widget.ViewPager;

public class WelcomActivity extends AppCompatActivity {
    private ViewPager viewPager;
    private MyViewPagerAdapter myViewPagerAdapter;
    private LinearLayout dotsLayout;
    private TextView[] dots;
    private int[] layouts;
    private Button btnSkip, btnNext;
    public  prefManager PrefManager;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);

        // Checking for first time launch - before calling setContentView()
        PrefManager = new prefManager(this);
        if (PrefManager.isFirstTimeLaunch()) {
            launchHomeScreen();
            finish();
        }

        // Making notification bar transparent
        if (Build.VERSION.SDK_INT >= 21) {
            getWindow().getDecorView().setSystemUiVisibility(View.SYSTEM_UI_FLAG_LAYOUT_STABLE | View.SYSTEM_UI_FLAG_LAYOUT_FULLSCREEN);
        }

        setContentView(R.layout.activity_welcome);

        viewPager = (ViewPager) findViewById(R.id.view_pager);
        dotsLayout = (LinearLayout) findViewById(R.id.layoutDots);
        btnSkip = (Button) findViewById(R.id.btn_skip);
        btnNext = (Button) findViewById(R.id.btn_next);


        // layouts of all welcome sliders
        // add few more layouts if you want
        layouts = new int[]{
                R.layout.welcome_slide1,
                R.layout.welcome_slide2,
                R.layout.welcome_slide3,
                R.layout.welcome_slide4};

        // adding bottom dots
        addBottomDots(0);

        // making notification bar transparent
        changeStatusBarColor();

        myViewPagerAdapter = new MyViewPagerAdapter();
        viewPager.setAdapter(myViewPagerAdapter);
        viewPager.addOnPageChangeListener(viewPagerPageChangeListener);

        btnSkip.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                launchHomeScreen();
            }
        });

        btnNext.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                // checking for last page
                // if last page home screen will be launched
                int current = getItem(+1);
                if (current < layouts.length) {
                    // move to next screen
                    viewPager.setCurrentItem(current);
                } else {
                    launchHomeScreen();
                }
            }
        });
    }

    private void addBottomDots(int currentPage) {
        dots = new TextView[layouts.length];

        int[] colorsActive = getResources().getIntArray(R.array.array_dot_active);
        int[] colorsInactive = getResources().getIntArray(R.array.array_dot_inactive);

        dotsLayout.removeAllViews();
        for (int i = 0; i < dots.length; i++) {
            dots[i] = new TextView(this);
            dots[i].setText(Html.fromHtml("&#8226;"));
            dots[i].setTextSize(35);
            dots[i].setTextColor(colorsInactive[currentPage]);
            dotsLayout.addView(dots[i]);
        }

        if (dots.length > 0)
            dots[currentPage].setTextColor(colorsActive[currentPage]);
    }

    private int getItem(int i) {
        return viewPager.getCurrentItem() + i;
    }

    private void launchHomeScreen() {
        PrefManager.setFirstTimeLaunch(false);
        startActivity(new Intent(WelcomActivity.this, MainActivity.class));
        finish();
    }

    //  viewpager change listener
    ViewPager.OnPageChangeListener viewPagerPageChangeListener = new ViewPager.OnPageChangeListener() {

        @Override
        public void onPageSelected(int position) {
            addBottomDots(position);

            // changing the next button text 'NEXT' / 'GOT IT'
            if (position == layouts.length - 1) {
                // last page. make button text to GOT IT
                btnNext.setText(getString(R.string.start));
                btnSkip.setVisibility(View.GONE);
            } else {
                // still pages are left
                btnNext.setText(getString(R.string.next));
                btnSkip.setVisibility(View.VISIBLE);
            }
        }

        @Override
        public void onPageScrolled(int arg0, float arg1, int arg2) {

        }

        @Override
        public void onPageScrollStateChanged(int arg0) {

        }
    };

    /**
     * Making notification bar transparent
     */
    private void changeStatusBarColor() {
        if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.LOLLIPOP) {
            Window window = getWindow();
            window.addFlags(WindowManager.LayoutParams.FLAG_DRAWS_SYSTEM_BAR_BACKGROUNDS);
            window.setStatusBarColor(Color.TRANSPARENT);
        }
    }

    /**
     * View pager adapter
     */
    public class MyViewPagerAdapter extends PagerAdapter {
        private LayoutInflater layoutInflater;

        public MyViewPagerAdapter() {
        }

        @Override
        public Object instantiateItem(ViewGroup container, int position) {
            layoutInflater = (LayoutInflater) getSystemService(Context.LAYOUT_INFLATER_SERVICE);

            View view = layoutInflater.inflate(layouts[position], container, false);
            container.addView(view);

            return view;
        }

        @Override
        public int getCount() {
            return layouts.length;
        }

        @Override
        public boolean isViewFromObject(View view, Object obj) {
            return view == obj;
        }


        @Override
        public void destroyItem(ViewGroup container, int position, Object object) {
            View view = (View) object;
            container.removeView(view);
        }
    }
}



---

4.activity_main.XML

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Hello World!"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintLeft_toLeftOf="parent"
        app:layout_constraintRight_toRightOf="parent"
        app:layout_constraintTop_toTopOf="parent" />

</androidx.constraintlayout.widget.ConstraintLayout>



5.activity_welcome.XML

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:showIn="@layout/activity_welcome">


    <androidx.viewpager.widget.ViewPager
        android:id="@+id/view_pager"
        android:layout_width="match_parent"
        android:layout_height="match_parent" />

    <LinearLayout
        android:id="@+id/layoutDots"
        android:layout_width="match_parent"
        android:layout_height="@dimen/dots_height"
        android:layout_alignParentBottom="true"
        android:layout_marginBottom="@dimen/dots_margin_bottom"
        android:gravity="center"
        android:orientation="horizontal">

    </LinearLayout>


    <Button
        android:id="@+id/btn_next"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentBottom="true"
        android:layout_alignParentRight="true"
        android:background="@null"
        android:text="@string/next"
        android:textColor="@color/bg_screen1" />

    <Button
        android:id="@+id/btn_skip"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentBottom="true"
        android:layout_alignParentLeft="true"
        android:background="@null"
        android:text="@string/skip"
        android:textColor="@color/bg_screen1" />

</RelativeLayout>



6.welcome_slide1

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="#FFFFFF"
   >

    <LinearLayout
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentTop="true"
        android:layout_centerHorizontal="true"
        android:layout_marginTop="91dp"

        android:gravity="center_horizontal"
        android:orientation="vertical">

        <ImageView
            android:layout_width="@dimen/img_width_height"
            android:layout_height="@dimen/img_width_height" />


    </LinearLayout>
</RelativeLayout>

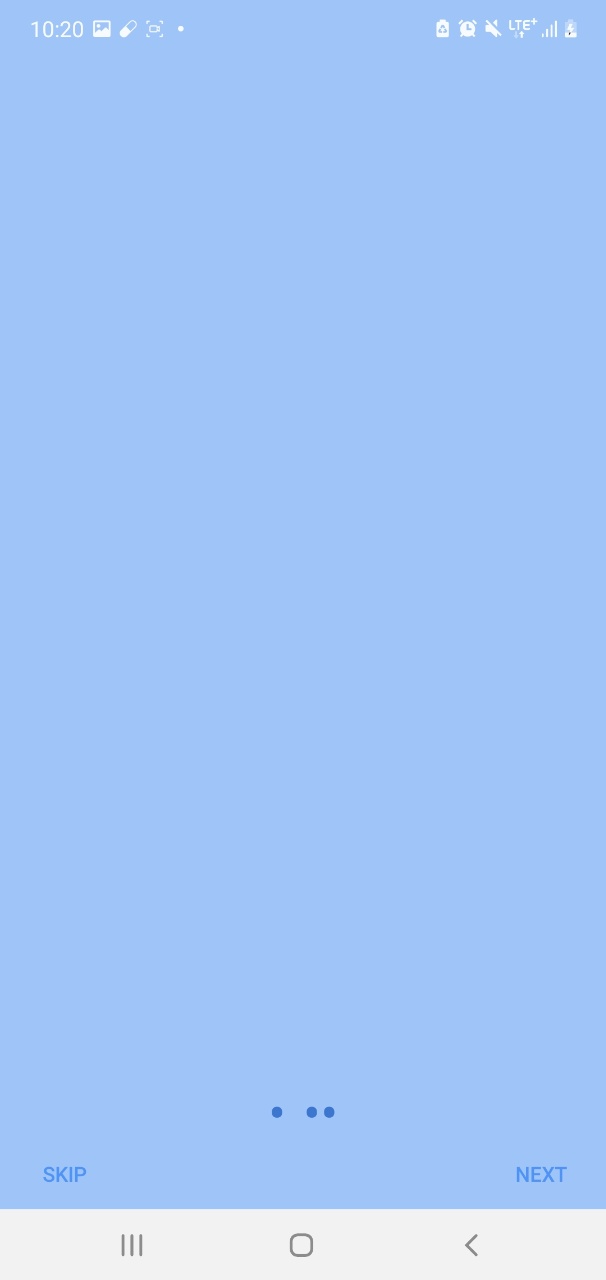

7.welcome_slide2

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@color/dot_light_screen1">

    <LinearLayout
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_centerInParent="true"
        android:gravity="center_horizontal"
        android:orientation="vertical">

    </LinearLayout>


</RelativeLayout>

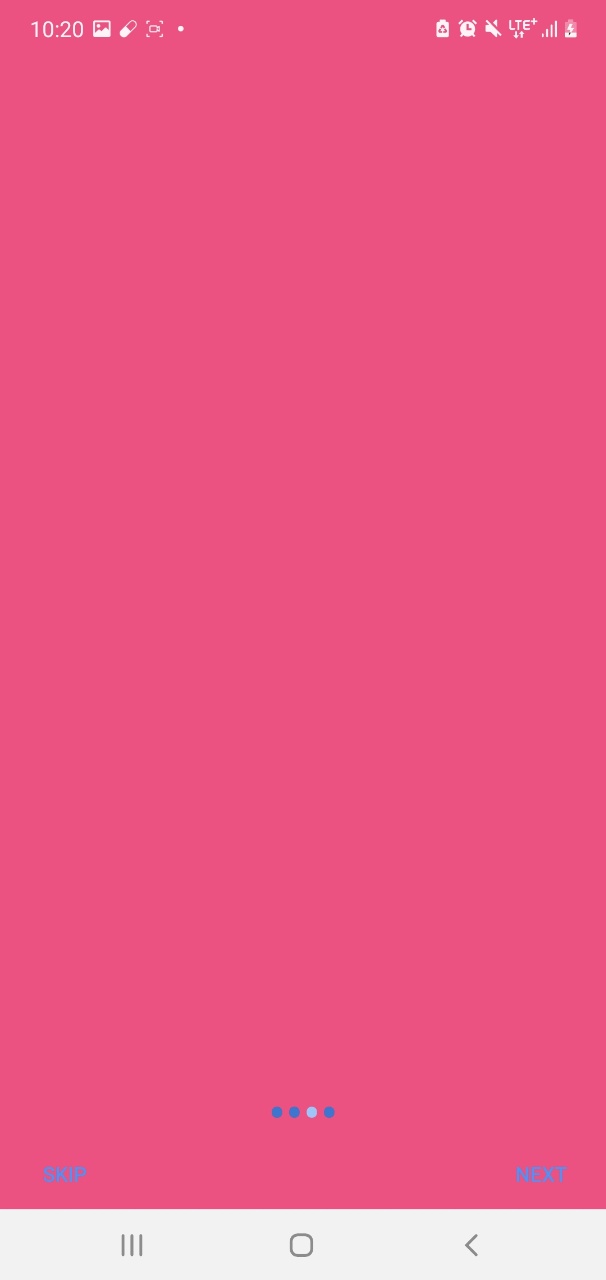

8.welcome_slide3

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@color/colorAccent">

    <LinearLayout
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_centerInParent="true"
        android:gravity="center_horizontal"
        android:orientation="vertical">


    </LinearLayout>

</RelativeLayout>

9.welcome_slide4

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@color/dot_dark_screen4">

    <LinearLayout
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_centerInParent="true"
        android:gravity="center_horizontal"
        android:orientation="vertical">

    </LinearLayout>

</RelativeLayout>



---

10.colors.xml

<?xml version="1.0" encoding="utf-8"?>
<resources>
    <color name="colorPrimary">#3F51B5</color>
    <color name="colorPrimaryDark">#303F9F</color>
    <color name="colorAccent">#FF4081</color>

    <!-- Screens background color-->
    <color name="bg_screen1">#3395ff</color>
    <color name="bg_screen2">#3395ff</color>
    <color name="bg_screen3">#3395ff</color>
    <color name="bg_screen4">#3395ff</color>

    <!-- dots inactive colors -->
    <color name="dot_dark_screen1">#2278d4</color>
    <color name="dot_dark_screen2">#2278d4</color>
    <color name="dot_dark_screen3">#2278d4</color>
    <color name="dot_dark_screen4">#2278d4</color>

    <!-- dots active colors -->
    <color name="dot_light_screen1">#93c6fd</color>
    <color name="dot_light_screen2">#93c6fd</color>
    <color name="dot_light_screen3">#93c6fd</color>
    <color name="dot_light_screen4">#93c6fd</color>

    <array name="array_dot_active">
        <item>@color/dot_light_screen1</item>
        <item>@color/dot_light_screen2</item>
        <item>@color/dot_light_screen3</item>
        <item>@color/dot_light_screen4</item>
    </array>

    <array name="array_dot_inactive">
        <item>@color/dot_dark_screen1</item>
        <item>@color/dot_dark_screen2</item>
        <item>@color/dot_dark_screen3</item>
        <item>@color/dot_dark_screen4</item>
    </array>
</resources>

11.dimens.xml

<?xml version="1.0" encoding="utf-8"?>
<resources>
    <!-- Default screen margins, per the Android Design guidelines. -->
    <dimen name="activity_horizontal_margin">16dp</dimen>
    <dimen name="activity_vertical_margin">16dp</dimen>
    <dimen name="fab_margin">16dp</dimen>
    <dimen name="dots_height">30dp</dimen>
    <dimen name="dots_margin_bottom">60dp</dimen>
    <dimen name="img_width_height">120dp</dimen>
    <dimen name="slide_title">30dp</dimen>
    <dimen name="slide_desc">16dp</dimen>
    <dimen name="desc_padding">40dp</dimen>
</resources>

12.strings.xml

<resources>
    <string name="app_name">My Application1</string>
    <string name="title_activity_welcome">Home Screen</string>
    <string name="next">Next</string>
    <string name="skip">Skip</string>
    <string name="start">앱 실행</string>


</resources>

13.themes.xml

<resources>
    <!-- Base application theme. -->
    <style name="AppTheme" parent="Theme.AppCompat.Light.NoActionBar">
        <!-- Customize your theme here. -->
        <item name="colorPrimary">@color/colorPrimary</item>
        <item name="colorPrimaryDark">@color/colorPrimaryDark</item>
        <item name="colorAccent">@color/colorAccent</item>
        <item name="windowActionBar">false</item>
        <item name="windowNoTitle">true</item>
    </style>

    <style name="AppTheme.AppBarOverlay" parent="ThemeOverlay.AppCompat.Dark.ActionBar" />

    <style name="AppTheme.PopupOverlay" parent="ThemeOverlay.AppCompat.Light" />

</resources>

이 코드를 예제로, 여러가지 수정하시면서 custom하면 될 것같습니다!!
by using this code, we can custom the intro_slide.
